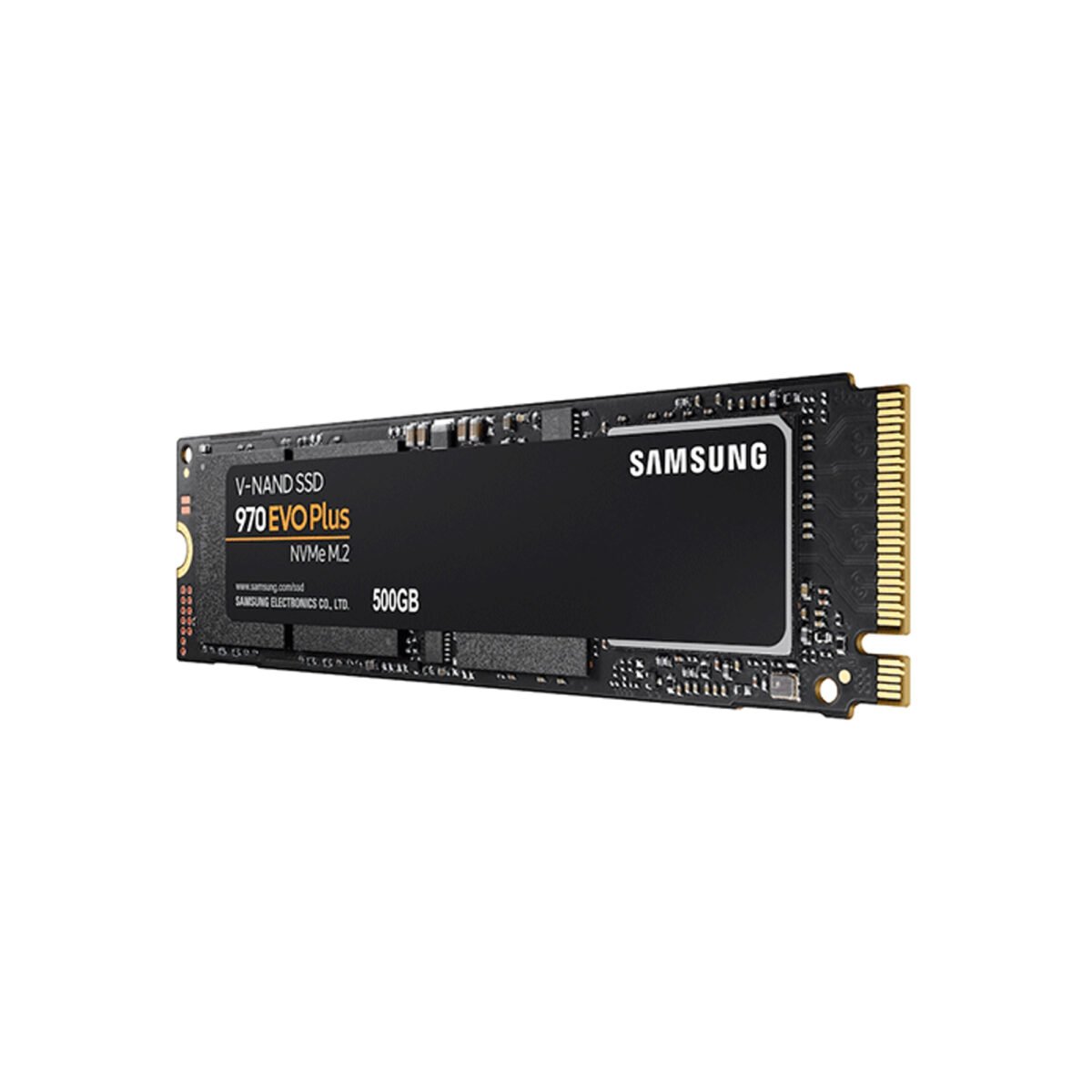

Samsung 970 Evo Plus 500GB M.2 Nvme Internal Solid State Drive SSD

Samsung 970 EVO Plus NVMe M.2 500GB – Specs Summary

• Type: SSD (Solid State Drive)
• Series: 970 EVO Plus
• Interface: PCIe Gen 3.0 x4, NVMe 1.3
• Capacity: 500GB (actual usable space may be less)
• Form Factor: M.2 (2280)
• Controller: Samsung Phoenix
• NAND Type: Samsung V-NAND 3-bit MLC
• Cache Memory: 512MB Low Power DDR4 SDRAM

Performance

• Sequential Read Speed: Up to 3,500 MB/s
• Sequential Write Speed: Up to 3,200 MB/s
• Random Read Speed: Up to 480,000 IOPS (QD32), Up to 19,000 IOPS (QD1)
• Random Write Speed: Up to 550,000 IOPS (QD32), Up to 60,000 IOPS (QD1)

Security & Features

• Encryption: AES 256-bit (TCG/Opal IEEE1667)
• Trim Support: Yes
• S.M.A.R.T. Support: Yes
• Garbage Collection: Automatic
• Device Sleep Mode: Yes
• Temperature Proof & Shock Resistant: Yes

Power & Reliability

• Power Consumption (Avg.): 5.8W (Max 9W in Burst Mode)
• Idle Power Consumption: Max 30mW
• Voltage: 3.3V ± 5%
• MTBF (Reliability): 1.5 Million Hours

Physical Specs

• Dimensions: 80.15 x 22.15 x 2.38 mm
• Weight: Max 8.0g

Software

• Management: Samsung Magician Software
