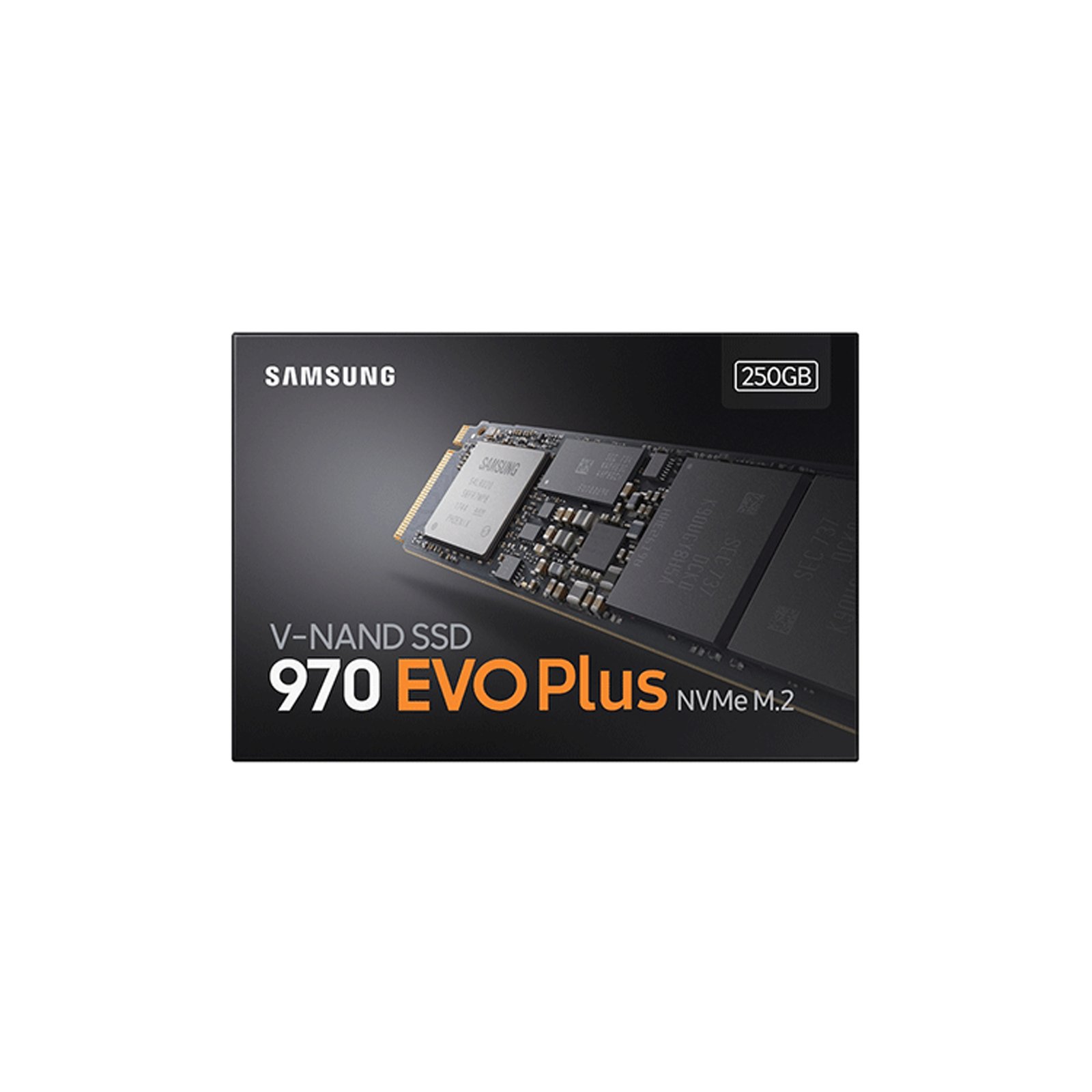

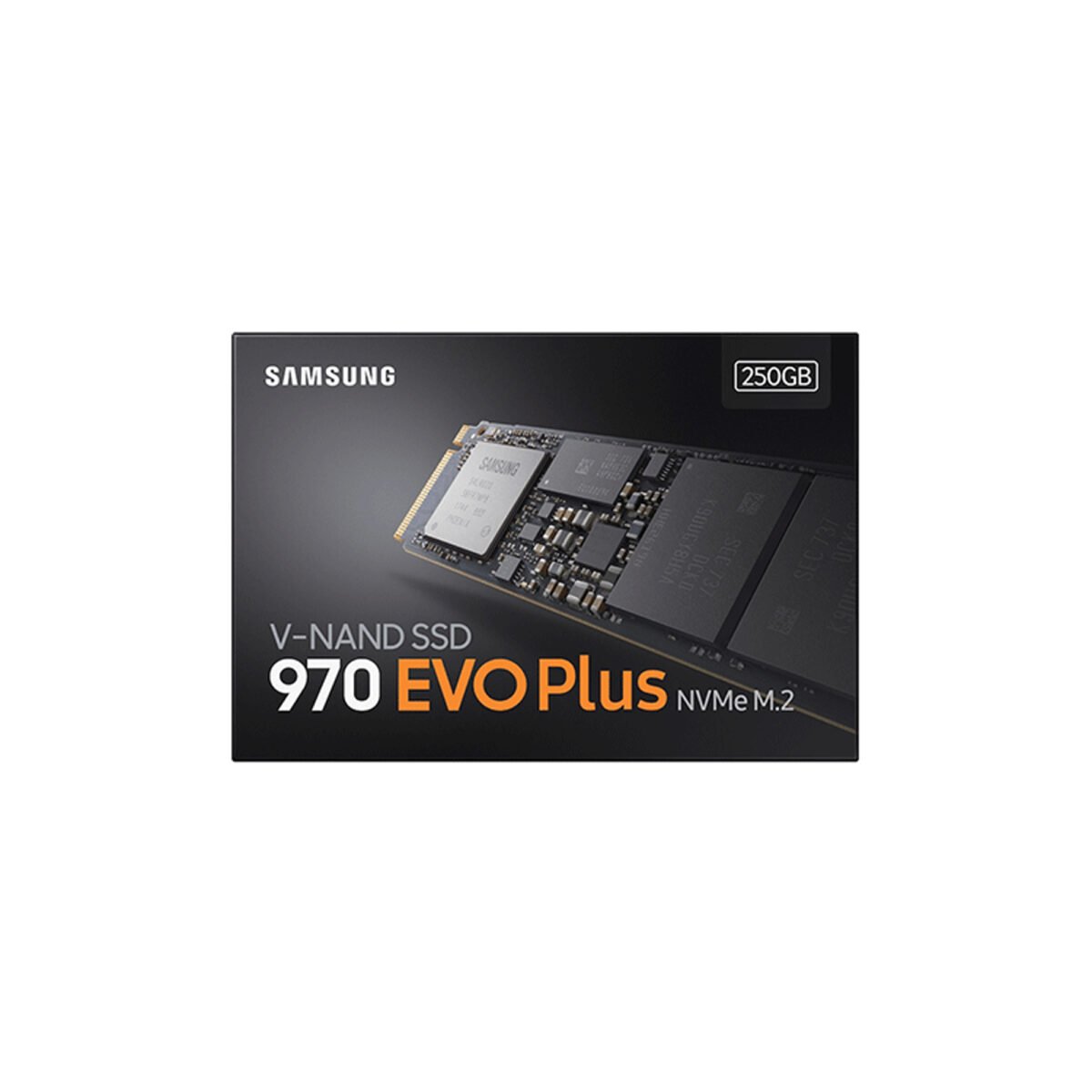

Samsung 970 EVO Plus 250GB SSD M.2 Internal Solid State Drive V-NAND for Laptop

Product Type

SSD

Series

970 EVO Plus

Usage Application

Client PCs

Interface

PCIe Gen 3.0 x 4, NVMe 1.3

Consumer

Yes

Capacity

250GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Sequential Read Speed

Up to 3,500 MB/s * Performance may vary based on system hardware & configuration

Sequential Write Speed

Up to 2,300 MB/s * Performance may vary based on system hardware & configuration

Random Read Speed

Random Read (4KB, QD32): Up to 250,000 IOPS; Random Read (4KB, QD1): Up to 17,000 IOPS * Performance may vary based on system hardware & configuration

Random Write Speed

Random Write (4KB, QD32): Up to 550,000 IOPS; Random Write (4KB, QD1): Up to 60,000 IOPS * Performance may vary based on system hardware & configuration

Controller

Samsung Phoenix Controller

NAND Flash

Samsung V-NAND 3-bit MLC

Cache Memory

Samsung 512MB Low Power DDR4 SDRAM

Trim Support

Supported

AES Encryption

AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

S.M.A.R.T. Support

Supported

GC (Garbage Collection)

Auto Garbage Collection Algorithm

WWN Support

Not supported

Device Sleep Mode Support

Yes

Temperature proof

Yes

NVMe

Yes

Gaming SSDs

Yes

Average Power Consumption (system level)

* Average: 5 W * Maximum: 8 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle)

Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration

Voltage

3.3 V ± 5 % Allowable voltage

Reliability (MTBF)

1.5 Million Hours Reliability (MTBF)

Operating Temperature

0 – 70 ℃ Operating Temperature

Shock

1,500 G & 0.5 ms (Half sine)

Product

M.2 (2280)

Product

80.15 x 22.15 x 2.38 (mm)

Product

Max 8.0 g Weight

Management SW

Magician Software for SSD management
