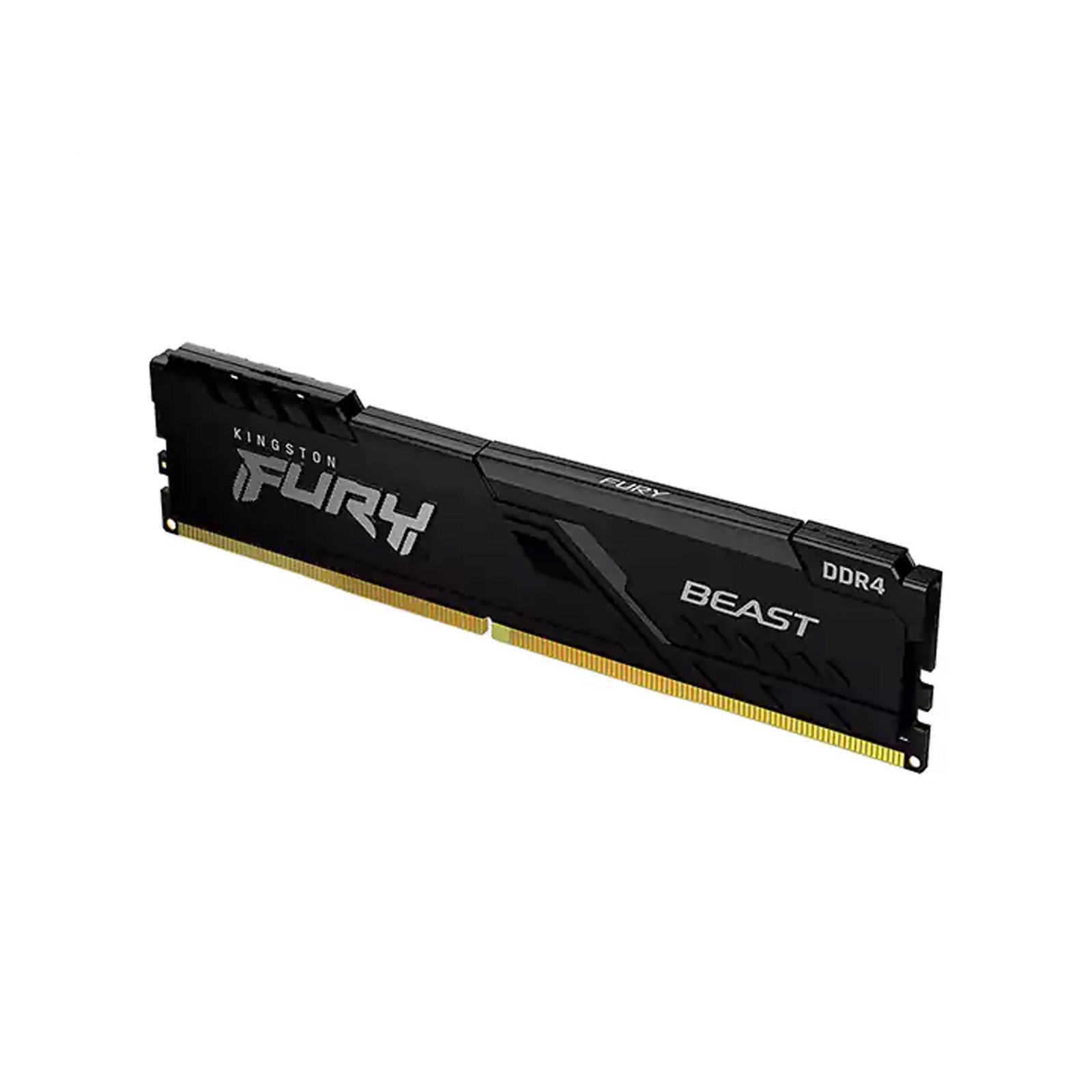

Kingston Fury Beast 8Gb Ddr4 3200Mhz Desktop

KF432C16BB/8
8GB 1G x 64-Bit
DDR4-3200 CL16 288-Pin DIMM
Continued >>
FEATURES
FURY KF432C16BB/8 is a 1G x 64-bit (8GB) DDR4-3200 CL16
SDRAM (Synchronous DRAM) 1Rx8, memory module, based on
eight 1G x 8-bit FBGA components per module. Each module kit
supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0.
Each module has been tested to run at DDR4-3200 at a low latency
timing of 16-18-18 at 1.35V. The SPDs are programmed to
JEDEC standard latency DDR4-2400 timing of 17-17-17 at
1.2V. Each 288-pin DIMM uses gold contact fingers. The
JEDEC standard electrical and mechanical specifications are
as follows:
CL(IDD)
Row Cycle Time (tRCmin)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin)
UL Rating
Operating Temperature
Storage Temperature
17 cycles
45.75ns(min.)
350ns(min.)
32ns(min.)
94 V – 0
0o
C to +85o
C
-55o
C to +100o
C
FACTORY TIMING PARAMETERS
Default (JEDEC): DDR4-2400 CL17-17-17 @ 1.2V
XMP Profile #1: DDR4-3200 CL16-18-18 @ 1.35V
XMP Profile #2: DDR4-3000 CL15-17-17 @ 1.35V
Power Supply: VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
On-Die termination (ODT)
16 internal banks; 4 groups of 4 banks each
Bi-Directional Differential Data Strobe
8 bit pre-fetch
Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
Height 1.34” (34mm), w/heatsink
